Labelling of the cables

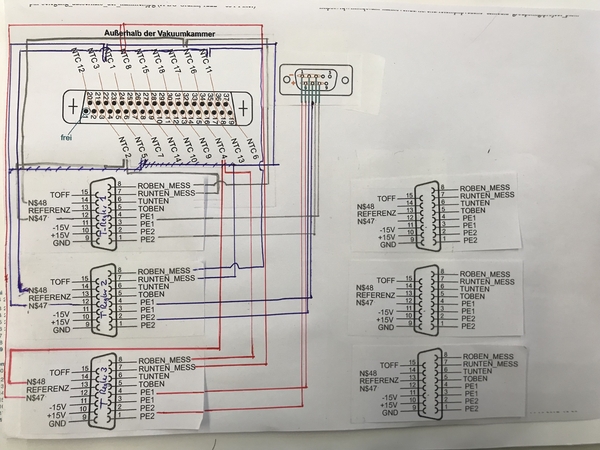

Labelling of the T-Regler cable

Peltierelemente werden an der Oberseite warm, wenn Output-Pins 3,2 sowie 1 an positiver Spannung angeschlossen ist.

Benutzt wird der Kabeltyp:

  • Für Peltierelemente: LAPP Kabel Stuttgart Unitronic LIYCY 8×0.14; Schirmung von alle Adern gleichzeitig
  • Für In-loop-NTC´s: LAPP Kabel Stuttgart Unitronic LIYCY 6×0.14; Schirmung von alle Adern gleichzeitig
  • Für Out-of-loop-NTC´s: LAPP Kabel Stuttgart Unitronic LIYCY 16×0.14; Schirmung von alle Adern gleichzeitig
Device Input: Male Connector Description Input: Pin Cable Color Output: Female Connector Output: Pin Cable-typ (Length) Comment NTC number
T-Regler 1 Sub-D-15 (1) PE 2 1 Yellow + Grey Sub-D-9 3 8×0.14 (3m) Use two wires for each Input-pin. Each Output-pin have four wires!
PE 2 2 Brown + Green 3
PE 1 3 Blue + Pink 8 Use two wires for each Input-pin. Each Output-pin have four wires!
PE 1 4 White + Red 8
RUNTEN_MESS 7 Pink Sub-D-37 3 6×0.14 (3m) NTC 2
ROBEN_MESS 8 White 16 NTC 16
N47 12 Green 21 NTC 2
N48 14 Grey 34 NTC 16
T-Regler 2 Sub-D-15 (2) PE 2 1 Yellow + Grey Sub-D-9 2 8×0.14 (3m) Use two wires for each Input-pin. Each Output-pin have four wires!
PE 2 2 Brown + Green 2
PE 1 3 Blue + Pink 7 Use two wires for each Input-pin. Each Output-pin have four wires!
PE 1 4 White + Red 7
RUNTEN_MESS 7 Pink Sub-D-37 6 6×0.14 (3m) NTC 1
ROBEN_MESS 8 White 18 NTC 11
N47 12 Green 24 NTC 1
N48 14 Grey 36 NTC 11
T-Regler 3 Sub-D-15 (3) PE 2 1 Yellow + Grey Sub-D-9 1 8×0.14 (3m) Use two wires for each Input-pin. Each Output-pin have four wires!
PE 2 2 Brown + Green 1
PE 1 3 Blue + Pink 6 Use two wires for each Input-pin. Each Output-pin have four wires!
PE 1 4 White + Red 6
RUNTEN_MESS 7 Pink Sub-D-37 8 6×0.14 (3m) NTC 8
ROBEN_MESS 8 White 15 NTC 4
N47 12 Green 26 NTC 8
N48 14 Grey 33 NTC 4
Out-of-Loop-Monitoring-Box Sub-D-25 NTC 12 1 Yellow Sub-D-37 2 16×0.14 (3m) NTC 12
14 Green 20
NTC 3 2 Green/White 4 NTC 3
15 Brown 22
NTC 5 3 Grey 5 NTC 5
16 Green/Brown 23
NTC 7 4 Pink 7 NTC 7
17 White 25
NTC 14 5 Blue 9 NTC 14
18 Blue/Red 27
NTC 15 6 Yellow/White 10 NTC 15
19 Yellow/Brown 28
NTC 10 7 Red 11 NTC 10
20 Pink/Grey 29
NTC 18 8 Black 12 NTC 18
21 Purple 30
NTC 9 9 Yellow 13 16×0.14 (3m) NTC 9
22 Grey 31
NTC 17 10 Yellow/Brown 14 NTC 17
23 Green/White 32
NTC 13 11 Yellow/White 17 NTC 13
24 Green/Brown 35
NTC 6 12 Purple 19 NTC 6
25 Black 37
free 13 not used / not connected!
T-Regler 4 Sub-D-15 (1) PE 2 1 Yellow + Grey
PE 2 2 Brown + Green
PE 1 3 Blue + Pink
PE 1 4 White + Red
RUNTEN_MESS 7 Purple
ROBEN_MESS 8 Black
N47 12 Pink-Grey
N48 14 Blue-Red
T-Regler 5 Sub-D-15 (1) PE 2 1 Yellow + Grey
PE 2 2 Brown + Green
PE 1 3 Blue + Pink
PE 1 4 White + Red
RUNTEN_MESS 7 Purple
ROBEN_MESS 8 Black
N47 12 Pink-Grey
N48 14 Blue-Red
T-Regler 6 Sub-D-15 (1) PE 2 1 Yellow + Grey
PE 2 2 Brown + Green
PE 1 3 Blue + Pink
PE 1 4 White + Red
RUNTEN_MESS 7 Purple
ROBEN_MESS 8 Black
N47 12 Pink-Grey
N48 14 Blue-Red

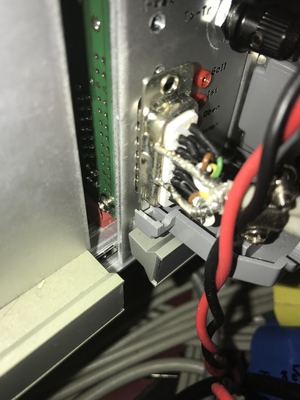

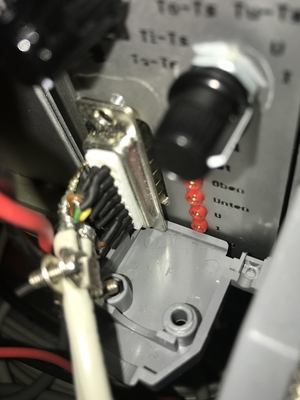

Example of soldering

Schirmung der Kable an die Buchse auf der Seite des Reglers/Sub-D-15 Konnector löten. Und die anderen Sub-D-15 Pins mit Schrumpfschlauch isolieren. Durchsichtigen Schrumpfschlauch verwenden!
