Cavity spectrum: plan/curved mirror

Caculates the cavity spectrum and the frequency distance between TEM_00 and higher order modes m+n. Two curved mirrors possible. Programm made by T. Legero.

• Radius of curvature of mirror R1: R1= 1 m
• Radius of curvature of mirror R2: R2= 1000000000 m
• Cavity Length: L= 0.48 m
• Reflectivity of mirrors: R= 0.99998
• Speed of light: c= 299792458 m/s

Step 1: Calculate the Free-Spectral-Rang and Gouy-Phase

• Free-Spectral-Rang: FSR
• Gouy-Phase: Gouy

$$FSR = \frac{c}{2\cdot L}$$ $$Gouy = \frac{FSR}{\pi} \cdot \arccos \left( \sqrt{(1-\frac{L}{R1})\cdot(1-\frac{L}{R2}} \right)$$

⇒

• FSR = 312.284 MHz
• Gouy = 76.0824 MHz

Step 2: Calculate the frequency difference between TEM_00 and TEM_mn

• TEM mode number: mn
• Next TEM_00: w
• Frequency difference between TEM_00 and TEM_mn: Delta

$$ \Delta = FSR - mn\cdot Gouy $$

• Define maximum of mn and w:
  • mn_max = 100
  • w_max = 100
• Define maximum of shown frequency difference to TEM_00:
  • abs(delta(mn,w)) < 10E6

• Frequency difference von (q-w)ter höherer Mode mn zu q-ter TEM_00-Mode (Matrix):

$$ \Delta(mn,w) = w\cdot FSR - mn\cdot Gouy $$

⇒

Freq. diff. of m+n = 4 higher order mode to 00-mode is 7.95436 MHz
Freq. diff. of m+n = 37 higher order mode to 00-mode is -4.49309 MHz
Freq. diff. of m+n = 41 higher order mode to 00-mode is 3.46128 MHz
Freq. diff. of m+n = 74 higher order mode to 00-mode is -8.98616 MHz
Freq. diff. of m+n = 78 higher order mode to 00-mode is -1.03181 MHz
Freq. diff. of m+n = 82 higher order mode to 00-mode is 6.92256 MHz

Step 3: Calculate the frequency difference between TEM_00 and the nearest TEM_nm

• Define the Modenumber of Higher-Order-Mode to plot (next Mode to 00):
  • mn = 4
• Define the Vary Mirror-Curvature:
  • R = 0.95:0.01:1.05
• Frequency difference between TEM_00 and TEM_mn:

$$ \Delta = FSR - mn\cdot Gouy $$

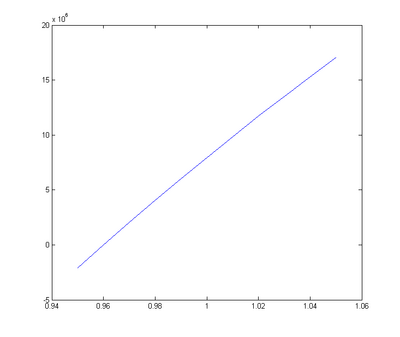

• plot(R,Delta)[Important!]:

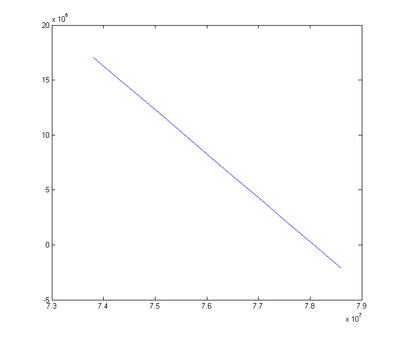

• plot(Gouy,Delta):

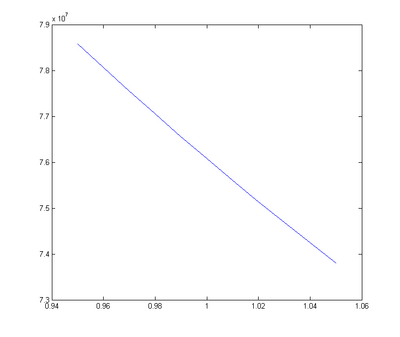

• plot(R,Gouy):
