CCD camera

Typ: https://www.voelkner.de/products/696151/Platinenkamera-Components-BC-713-720-x-576-Pixel-12-V-DC.html

Advantages compared to the old one

  1. less heating
  2. less complex

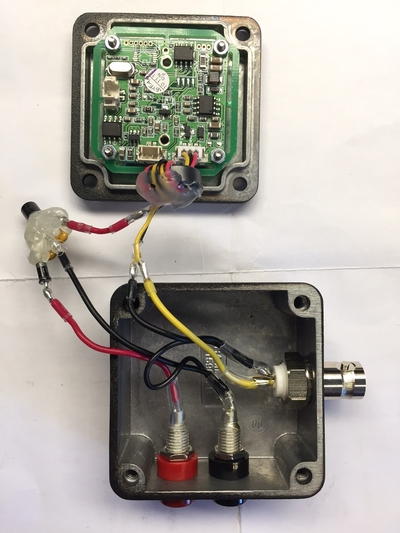

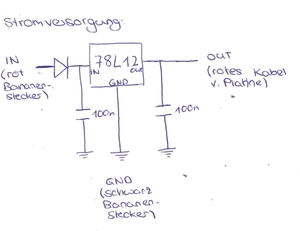

Power supply

  • Cables
    • red: Plus
    • black: GND
    • yellow: signal
  • Connections
    • Banane: power supply
    • BNC: signal

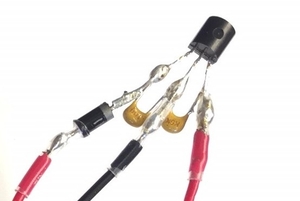

  • ferrit core: cables wrapped around two times and fixed with hot glue
  • GND of the box is separated from GND of the Mount with plastic washers


Next time: no Banana!
