Aktive vibration isolation

Max 100kg!

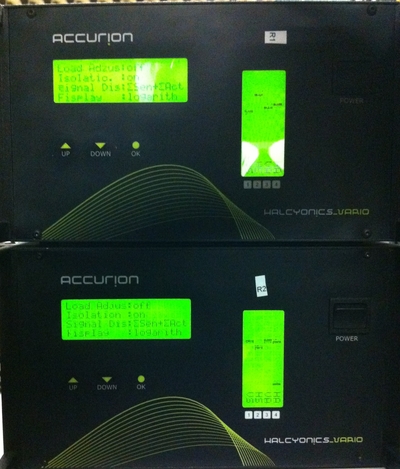

We have two stages: R1 & clock laser are on one stage and R2 is on another stage. It is a special design because the electronics have been removed of the vibration platform for thermal reasons.

Modi

  • three modi available: aktive, transportable, off
  • Information on aktive modus:
  1. First step: Complete load adjust with “up”-button
    • load adjust: on or off or locked
  2. Second step: Activate isolation with “down”-button
    • isolation on or off
Important in aktive modus: The “four bars” VS, HS, VA, HA should be in the upper third of the range for an adequate control range.
  • Information on transportable modus: Mechanic is decoupled. Now is working, for example optics screw down, possible.
  • Information on off modus: -
Movements in the room have influence of the vibration isolation!
